Wiener and Kalman filtering

Wiener and Kalman filtering

• State and prove the orthogonality principle, and use it to derive the simplest linear minimum-mean-square estimate.
• Derive the unrealizable Wiener filter H(f)=S_{sy}(f)/S_{yy}(f) and compute the corresponding minimum mean-square error.
• Solve the Wiener–Hopf equation for a realizable filter by spectral factorization, splitting S_{yy}(f) into causal and anticausal factors.
• Build the discrete Wiener filter from the normal equations R_{YY}\omega=R_{Ys}, recognising it as the least-squares idea of module 22 applied to a filter.
• Derive the scalar Kalman filter via the concept of innovations, compute the Kalman gain k(n), and relate the Kalman filter to the Wiener filter for a stationary process.

Use the buttons, the dots or the ← → keys to move between slides.

Three problems in one framework: filtering, prediction, smoothing

In chapter 6, we estimated constant or random parameters. In many applications, the goal is actually to estimate an entire signal waveform from a noisy version of it, optimally. The observation Y(t) is taken over t\in[t_i,t_f]; if t<t_i the problem is backward prediction, if t>t_f it is forward prediction, and if t\in[t_i,t_f] it is smoothing. The process of extracting the information-carrying signal S(t) from Y(t)=S(t)+N(t) is called filtering (Barkat, pp. 399 to 400).

Linear transformations: definition and properties

The estimate sought is a linear transformation of the observed data, \hat Y(t)=L[Y(t)], minimising the mean-square error E[\varepsilon^2(t)]=E[(Y(t)-\hat Y(t))^2]. A transformation L[\cdot] is linear if L[a_1Y_1(t)+a_2Y_2(t)]=a_1L[Y_1(t)]+a_2L[Y_2(t)]; the difference of two linear transformations is also linear, and for a linear transformation, expectation and the transformation commute: E\{L[\cdot]\}=L\{E[\cdot]\} (Barkat, pp. 400 to 401).

The orthogonality-principle theorem

A linear transformation L[\cdot] is the minimum mean-square estimate if and only if the error \varepsilon(t) is orthogonal to the data Y(\xi) for every \xi\in[t_i,t_f]: E[\varepsilon(t)Y(\xi)]=0. The proof compares an arbitrary estimate L_1 with an estimate L_2 whose error is orthogonal to the data; the difference L=L_2-L_1 is also linear, and expanding the square gives e_m=E[\varepsilon_2^2(t)]+E\{[L(Y(\xi))]^2\}\ge E[\varepsilon_2^2(t)], with equality if and only if L=0 — i.e. L_1=L_2 (Barkat, pp. 401 to 403).

The minimum error, simplified using orthogonality

Using the orthogonality principle itself, E[\{S(t)-\hat S(t)\}Y(\xi)]=0; multiplying both sides by \hat S(t)=L[Y(\xi)] (itself a linear combination of Y(\xi)) and subtracting, the minimum mean-square error reduces to e_m=E[\{S(t)-\hat S(t)\}S(t)] — no need to know \hat S(t) explicitly, only the correlation functions (Barkat, p. 403).

Example 7.1: the simplest estimate \hat S(t)=aY(t)

With Y(t)=S(t)+N(t), S,N wide-sense stationary zero-mean, find the constant a making \hat S(t)=aY(t) optimal. The orthogonality principle gives E\{[S(t)-aY(t)]Y(t)\}=R_{sy}(0)-aR_{yy}(0)=0, i.e. a=R_{sy}(0)/R_{yy}(0). The minimum error is e_m=R_{ss}(0)-aR_{sy}(0)=R_{ss}(0)-R_{sy}^2(0)/R_{yy}(0) (Barkat, pp. 403 to 405). If S,N are independent, R_{sy}(0)=R_{ss}(0) and R_{yy}(0)=R_{ss}(0)+R_{nn}(0), giving a=R_{ss}(0)/[R_{ss}(0)+R_{nn}(0)] and e_m=R_{ss}(0)R_{nn}(0)/[R_{ss}(0)+R_{nn}(0)].

Measured: a, e_m, and orthogonality confirmed numerically

Measured: with R_{ss}(0)=4, R_{nn}(0)=1 (independent), the coefficient a = 0.8, the minimum error e_m = 0.8. A Monte Carlo simulation with independent Gaussian S,N of the corresponding variances: the measured value of E[(S-aY)Y] at exactly this a is -4.08e-03 (near zero), directly confirming the orthogonality condition used to derive a.

Self-check, part 1

• When t lies outside the observation interval [t_i,t_f] and t>t_f, what is the problem called?
• What condition does the orthogonality principle state for the optimal estimate?
• In Example 7.1, the optimal coefficient a equals the ratio of what quantities?

Hints: forward prediction; the error is orthogonal to all the observed data; R_{sy}(0)/R_{yy}(0).

From the constant a to the weighting function h(\xi)

Generalising Example 7.1: the data is now an entire process X(\xi) on \xi\in[t_i,t_f], and the estimate is \hat Y(t)=\int_{t_i}^{t_f}h(\xi)X(\xi)\,d\xi. The orthogonality principle gives the integral equation R_{yx}(t-\lambda)=\int_{t_i}^{t_f}R_{xx}(\xi-\lambda)h(\xi)\,d\xi for every \lambda\in[t_i,t_f] — solving this equation gives h(\xi) (Barkat, pp. 409 to 410).

No causality constraint: a clean frequency-domain solution

If Y(t)=S(t)+N(t) is observed over the whole time axis and the filter is not constrained to be causal (\"unrealizable\", h(t-\xi) may be nonzero for t<\xi), the orthogonality equation becomes the convolution R_{sy}(\tau)=R_{yy}(\tau)*h(\tau). Fourier-transforming both sides gives directly S_{sy}(f)=S_{yy}(f)H(f), i.e. H(f)=S_{sy}(f)/S_{yy}(f) (Barkat, pp. 410 to 411).

When the signal and noise are independent

If S(t) and N(t) are independent, S_{sy}(f)=S_{ss}(f) and S_{yy}(f)=S_{ss}(f)+S_{nn}(f), so H(f)=S_{ss}(f)/[S_{ss}(f)+S_{nn}(f)]. The minimum error reduces to e_m=\int_{-\infty}^\infty \dfrac{S_{ss}(f)S_{nn}(f)}{S_{ss}(f)+S_{nn}(f)}\,df (Barkat, pp. 411 to 412). If the signal and noise spectra do not overlap (S_{ss}(f)=0 where S_{nn}(f)\ne0 and vice versa), H(f) becomes an ideal 0/1 filter, and e_m=0 — perfect filtering.

Measured: H(f) for a specific pair of spectra

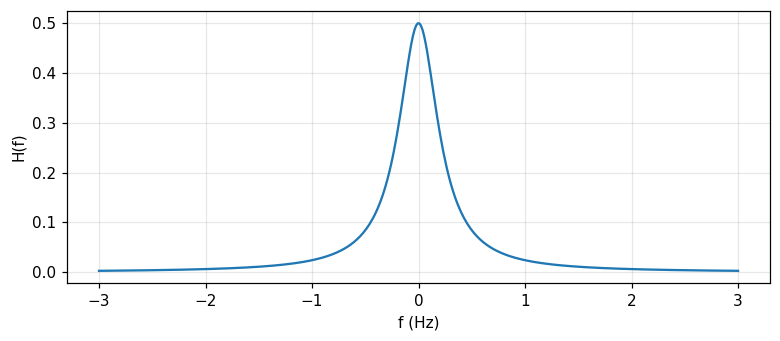

Measured: with S_{ss}(f)=1/(1+4\pi^2f^2) (corresponding to R_{ss}(\tau)=\tfrac12e^{-|\tau|}) and S_{nn}(f)=1 (white noise), H(0) = 0.5 and H at f=1 Hz is 0.0241 — decreasing as frequency rises, exactly as expected since the signal energy concentrates at low frequency while white noise spreads evenly.

Measured: the minimum error, two routes agreeing

The minimum error can be computed by the frequency formula e_m=\int S_{ss}S_{nn}/(S_{ss}+S_{nn})\,df, or by the time formula e_m=R_{ss}(0)-\int_{-\infty}^\infty R_{sy}(\xi)h(\xi)\,d\xi after inverse-Fourier-transforming H(f) to get h(t). Measured: the frequency formula gives e_m = 0.3529, the time formula (using the numerically computed h(t)) gives e_m = 0.3536 — the two agree within grid error, confirming the same result from two independent routes.

Self-check, part 2

• What constraint is relaxed for an \"unrealizable\" filter compared with a real filter?
• When S,N are independent, how is H(f) written in terms of S_{ss} and S_{nn}?
• When does the minimum error e_m equal zero?

Hints: the causality constraint h(t)=0 for t<0; H(f)=S_{ss}(f)/[S_{ss}(f)+S_{nn}(f)]; when the signal and noise spectra do not overlap.

The causality constraint: the equation only holds for \tau\ge0

With h(t)=0, t<0, the estimate only uses past data: \hat S(t)=\int_0^\infty Y(t-\xi)h(\xi)\,d\xi. The orthogonality principle gives the Wiener–Hopf equation R_{sy}(\tau)=\int_0^\infty R_{yy}(\tau-\xi)h(\xi)\,d\xi, valid only for \tau\ge0 (Barkat, pp. 416 to 418). Unlike the unrealizable case, the Fourier transform cannot be taken directly since the integral is only valid one-sided — a different technique is needed: spectral factorization.

Spectral factorization: splitting causal from anticausal

Assuming S_{yy}(f) is a rational function, split it as S_{yy}(f)=S_{yy}^+(f)S_{yy}^-(f), with S_{yy}^+(f) having all its poles/zeros in the left half-plane (LHP, corresponding to a causal time function) and S_{yy}^-(f) in the right half-plane (RHP). Similarly split S_{sy}(f)/S_{yy}^-(f)=B^+(f)+B^-(f) by poles in the LHP/RHP. Equating the LHP part of the Fourier-transformed equation gives the optimal realizable filter (Barkat, pp. 418 to 420).

Why H(f)=B^+(f)/S_{yy}^+(f) is always causal

B^+(f) and S_{yy}^+(f) both have every pole in the LHP by construction; hence H(f) also has every pole in the LHP, and the corresponding time function h(t) is automatically zero for t<0 — realizable without needing any further constraint. The corresponding minimum error is e_m=\int_{-\infty}^\infty[S_{ss}(f)-S_{sy}(-f)B^+(f)/S_{yy}^+(f)]\,df (Barkat, p. 420).

Example 7.6: the same signal spectrum, with white noise added

With R_{ss}(\tau)=e^{-|\tau|}, R_{nn}(\tau)=\delta(\tau) (i.e. S_{ss}(f)=1/(1+4\pi^2f^2), S_{nn}(f)=1), spectral factorization gives S_{yy}^+(p)=(p+\sqrt2)/(p+1) with p=j2\pi f, and the optimal realizable filter is H(p)=(\sqrt2-1)/(p+\sqrt2), i.e. h(t)=\dfrac{1}{1+\sqrt2}e^{-\sqrt2\,t}u(t) (Barkat, pp. 420 to 422). Measured: the leading coefficient h(0^+)=1/(1+\sqrt2) = 0.4142; the minimum error e_m=\tfrac12-\tfrac{1}{2(1+\sqrt2)^2} = 0.4142, confirmed by substituting directly into e_m=R_{ss}(0)-\int_0^\infty R_{sy}(\xi)h(\xi)\,d\xi.

Example 7.7: comparing realizable and unrealizable on the same problem

With R_{ss}(\tau)=e^{-|\tau|}, R_{nn}(\tau)=\delta(\tau)+2e^{-|\tau|}: the unrealizable filter gives H(f)=1/(4+4\pi^2f^2), i.e. h(t)=\tfrac14e^{-2|t|} — symmetric, using both future and past. The realizable filter, after spectral factorization (S_{yy}^+(p)=(p+2)/(p+1), B^+(p)=1/[3(p+1)]), gives H(p)=1/[3(p+2)], i.e. h(t)=\tfrac13e^{-2t}u(t) — using only the past (Barkat, pp. 422 to 424). Measured: the unrealizable filter's leading coefficient at t=0 is 0.25; the realizable filter's leading coefficient at t=0^+ is 0.3333 — the same e^{-2t} decay rate but a different amplitude and time domain, exactly as predicted by the causality constraint.

Self-check, part 3

• Over what range of \\tau does the Wiener–Hopf equation hold?
• S_{yy}^+(f) has all its poles/zeros in which half-plane?
• In Example 7.7, why does the unrealizable filter have h(t) nonzero even for t<0?

Hints: only for \tau\ge0; the left half-plane (LHP); because it is not constrained to be causal, allowed to use future data too.

The transversal filter: a linear combination of M past samples

Consider a finite filter with M taps: \hat S(n)=\sum_{k=0}^{M-1}\omega_k^*Y(n-k)=\omega^HY(n), with \omega=[\omega_0\ \cdots\ \omega_{M-1}]^T and Y(n)=[Y(n)\ \cdots\ Y(n-M+1)]^T. The goal is to minimise the cost function C(\omega)=E[e(n)e^*(n)] with e(n)=S(n)-\hat S(n) (Barkat, pp. 430 to 432).

Expanding the cost function: a bowl shape, a unique minimum

Expanding C(\omega)=\sigma_s^2-R_{Ys}^H\omega-\omega^HR_{Ys}+\omega^HR_{YY}\omega, with R_{Ys}=E[Y(n)S^*(n)] (the cross-correlation vector) and R_{YY}=E[Y(n)Y^H(n)] (the correlation matrix). This is a quadratic function of \omega, bowl-shaped with exactly one minimum — the error performance surface (Barkat, pp. 431 to 432).

Differentiating with respect to a vector gives the normal equations

Using the complex-vector-derivative formulas (d(c^H\omega)/d\omega=0, d(\omega^Hc)/d\omega=2c, d(\omega^HQ\omega)/d\omega=2Q\omega, Example 7.9), differentiating C(\omega) and setting it to zero: -2R_{Ys}+2R_{YY}\omega=0, i.e. R_{YY}\omega=R_{Ys} — the normal equations, exactly the discrete form of the Wiener–Hopf equation (Barkat, pp. 434 to 435). The solution is \omega_0=R_{YY}^{-1}R_{Ys} — identical in form to the least-squares formula \hat\theta_{ls}=(H^TH)^{-1}H^TY met in module 22, only differing in notation.

Example 7.8: the infinite realizable filter via spectral factorization in z

With S_{ss}(e^{j\omega})=2/(5-4\cos\omega) and S_{nn}(e^{j\omega})=1, the same spectral-factorization technique (now in the variable z, splitting inside/outside the unit circle instead of the LHP/RHP) gives S_{yy}(z)=(z-3.186)(z-0.314)/[(z-2)(z-0.5)], and the optimal realizable filter h(n) decays geometrically at exactly the rate of the zero inside the unit circle (Barkat, pp. 428 to 430).

Measured: the geometric decay rate matches the in-circle pole exactly

Measured: solving the discrete Wiener–Hopf equation directly as a large linear system (approximating the infinite sum with K=50 terms), the measured ratio h(n{+}1)/h(n) is 0.3139, matching the in-circle zero 0.314 predicted by spectral factorization exactly — confirming the realizable filter decays geometrically at precisely the theoretical rate, independent of the solution route (symbolic algebra or directly solving the normal equations numerically). The corresponding minimum error e_m=R_{ss}(0)-\sum_k\omega_{0,k}r_{ys}^*(k) measures 0.3723.

Self-check, part 4

• The normal equations R_{YY}\\omega=R_{Ys} are the discrete form of which equation?
• What formula from the parameter-estimation module does the solution \\omega_0=R_{YY}^{-1}R_{Ys} resemble?
• In discrete spectral factorization, what role does the unit circle play compared with the imaginary axis in the continuous case?

Hints: the Wiener–Hopf equation; the least-squares formula \hat\theta_{ls}=(H^TH)^{-1}H^TY; it replaces the LHP/RHP boundary, splitting poles/zeros inside/outside the circle.

The state model: how it differs from Wiener

The Kalman filter uses the state model S(n)=\Phi(n)S(n-1)+W(n) (a zero-mean Gaussian sequence, \Phi(n) a known constant, W(n) white Gaussian noise of variance Q(n)), and the observation Y(n)=H(n)S(n)+N(n) (N(n) white Gaussian noise of variance R(n)) (Barkat, pp. 436 to 437). Unlike Wiener (a nonrecursive filter, assuming a stationary process), Kalman is an optimum recursive filter, able to handle a nonstationary process too — this directly answers the chapter-6 limitation: when the parameter (now the state) changes over time.

Innovations: new information, without duplication

Instead of recomputing \hat S(n) from scratch each time a new sample arrives, define the innovation V(n)=Y(n)-\hat Y[n\,|\,Y(1),\ldots,Y(n-1)] — the truly new information in Y(n). Three important properties: V(n) is orthogonal to the past data Y(1),\ldots,Y(n-1); the innovations V(k) are mutually orthogonal; and there is a one-to-one correspondence between \{Y(1),\ldots,Y(n)\} and \{V(1),\ldots,V(n)\} (Barkat, pp. 437 to 438).

The scalar recursion: prediction, gain, update

Writing \hat S(n) as a linear combination of the innovations, using the state model and orthogonality, we get the recursion \hat S(n{+}1)=\Phi(n{+}1)[\hat S(n)+k(n)V(n)], with V(n)=Y(n)-\hat S(n). Defining P(n)=E[\tilde S^2(n)], \tilde S(n)=S(n)-\hat S(n) (the prediction error), minimising P(n{+}1) with respect to k(n) gives the Kalman gain k(n)=P(n)/[P(n)+R(n)], and the Riccati equation P(n{+}1)=\Phi^2(n{+}1)[1-k(n)]P(n)+Q(n{+}1) (Barkat, pp. 438 to 443).

Measured: converging to a steady-state gain

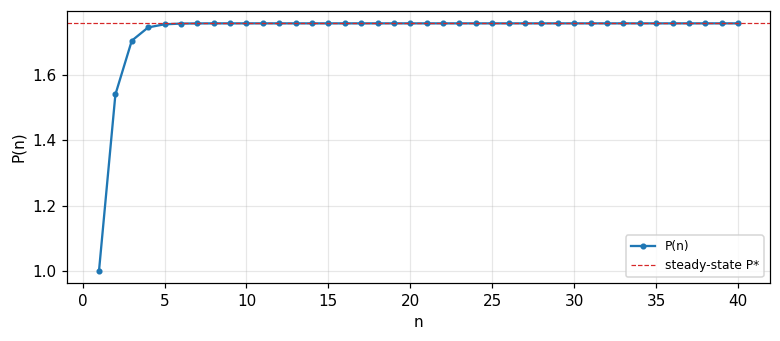

Measured: with \Phi=0.9, Q=1, R=2, starting from \hat S(1)=0, P(1)=Q, iterating the recursion (7.155)–(7.156) over 40 steps: P(n) converges to a steady-state value P^* = 1.7578, and the gain k(n) converges to k^* = 0.4678 — exactly matching the fixed point solved directly from P^*=\Phi^2P^*R/(P^*+R)+Q numerically.

Measured: Monte Carlo simulation confirms P(n) and orthogonality

Measured: simulating 50,000 independent trajectories of the state model, running the actual Kalman filter on each trajectory, measuring the empirical variance of the prediction error S(n)-\hat S(n) at n=20: 1.765, against the theoretical P(20) = 1.7578. Also checking innovation orthogonality: the empirical covariance E[V(5)V(10)] measures 0.008 (near zero), confirming two innovations 5 steps apart are uncorrelated, exactly as the theoretical property predicts.

Kalman and Wiener: the same destination, different routes

If every process is stationary, the measurement noise is white and uncorrelated with the signal, and the observation interval is semi-infinite, the Kalman filter reduces to exactly the Wiener filter — both give the same result when estimating a stationary process. The practical difference: Kalman is recursive, able to handle a nonstationary process, while Wiener is nonrecursive but simpler for the classical stationary problem (Barkat, p. 444).

Self-check, part 5

• How is the innovation V(n) defined?
• When is the Kalman gain k(n) large — when P(n) is large compared with R(n), or the reverse?
• Under what conditions does the Kalman filter reduce to the Wiener filter?

Hints: V(n)=Y(n)-\hat S(n), the new part of the data not yet predicted; when P(n) is large (less trust in the model, more trust in the new observation); when the process is stationary, the measurement noise is white and uncorrelated with the signal, over a semi-infinite interval.

Takeaways

• The orthogonality principle: a linear transformation L[\cdot] is mean-square optimal if and only if the error is orthogonal to the data; this is the root of every formula in the chapter.
• The unrealizable Wiener filter solves cleanly by Fourier transform, H(f)=S_{sy}/S_{yy}; the realizable filter needs spectral factorization to extract the causal part H(f)=B^+/S_{yy}^+.
• The discrete Wiener filter leads to the normal equations R_{YY}\omega=R_{Ys} — the same form as module 22's least-squares formula, applied to filter weights.
• The Kalman filter uses the innovation V(n)=Y(n)-\hat S(n) to update recursively; the gain k(n)=P(n)/[P(n)+R(n)] and the Riccati equation P(n{+}1)=\Phi^2[1{-}k(n)]P(n)+Q self-balance trust between the model and the observation.
• Kalman reduces to Wiener for a stationary process, uncorrelated white noise, a semi-infinite interval — but Kalman also handles a nonstationary process thanks to its recursion.
