Obtaining transforms

Obtaining transforms

• Compute transforms by closed-form integration for rectangles, staircase functions, impulse trains, e^{-|x|}, the Gaussian, 1/x and \text{sgn}\,x.
• Write and test the "slow" Fourier transform program, choose K and X, and understand why finite data give an aliasing error.
• Generate new transforms from the convolution and derivative theorems (reduction to impulses).
• Understand how spectra are measured: the radio-frequency spectrum analyzer and optical Fourier transform spectroscopy.
• Check results numerically even when the algebra is done by hand.

Use the buttons, the dots or the ← → keys to move between slides.

Why this chapter

Many chains of argument in which the Fourier transform matters need no particular transform pair, yet carrying out a general argument with a special case in mind often serves as insurance against surprises (Bracewell, p. 136). The pairs used to illustrate the theorems were all asserted without derivation, which does not help when new pairs are needed. This chapter considers ways of carrying out the transformation.

Four routes

1. Evaluate the integral \int f(x)e^{-i2\pi xs}dx directly (closed form).
2. Numerical transformation: a sum instead of an integral, including a short "slow" program and the FFT (chapter 11).
3. Generation from the basic theorems, starting from a few known pairs.
4. Extraction from tables.

The book notes that some classes of function will never be stumbled on by theorems, yet a variety of physically feasible functions prove accessible (p. 137).

The rectangle function

When f(x)=\Pi(x) the transform is just the integral of a cosine over [-\tfrac12,\tfrac12] (Bracewell, p. 137):

At s=0.3: 0.8584 by both numerical integration and the formula.

Staircase functions: sums of rectangles

If f is nonzero on several segments and constant within each, integration in closed form is again possible. For f(x)=\sum a_n\Pi\!\left(\frac{x-b_n}{c_n}\right), shift and similarity give F(s)=\sum a_nc_ne^{-i2\pi b_ns}\,\text{sinc}\,c_ns (p. 137). Such functions include staircases and Morse-code signals and can simulate any kind of variation as closely as desired (p. 138). Measured with three pulses (a,b,c)=(1,0,2),(0.5,3,1),(-1,-2,1) at s=0.3: real part 2.0508, imaginary part 0.7568.

A set of impulses: sifting gives a sum of exponentials

An even simpler case arises if f is zero almost everywhere: f(x)=\sum a_n\delta(x-b_n). Only the values of a_n\exp(-i2\pi xs) at x=b_n matter, and by the sifting theorem F(s)=\sum a_ne^{-i2\pi b_ns} (p. 138). Measured: simulating three impulses (a,b)=(2,-1),(-1,0.5),(0.5,2) by narrow rectangles of width 10^{-3} gives magnitude 3.4093 at s=0.3, exactly the exponential sum.

When there is no general rule: the example e^{-|x|}

If f has some special functional form it may be possible to integrate, but no general rules can be given (p. 138). For f=e^{-|x|}, F(s)=2\int_0^\infty e^{-x}\cos2\pi xs\,dx=2\,\text{Re}\,\dfrac{1}{1+i2\pi s}:

At s=0.3: 0.4393 by numerical integration, by the real part and by the formula.

The Gaussian: completing the square

For f=e^{-\pi x^2} write \pi x^2+i2\pi xs=\pi(x+is)^2+\pi s^2, take e^{-\pi s^2} outside, and use the known result that the infinite integral of \exp(-\pi u^2) is unity (p. 139). The result e^{-\pi s^2} = 0.7537 at s=0.3, matching the complex numerical integral.

1/x: a semicircular contour integral

The infinite discontinuity at the origin makes the standard Fourier integral diverge, so consider the limit with the interval (-\epsilon,\epsilon) removed. Take a semicircle of radius R with a small indentation of radius \epsilon at the origin; no poles are enclosed so the contour integral is zero. As R\to\infty the fourth integral vanishes and the small arc contributes \pm i\pi according to the sign of s; the pair in the limit is (p. 139):

Measured: cutting at |x|\le10^4 the imaginary part is -3.141 at s=0.3, i.e. -\pi.

\text{sgn}\,x: a sequence approaching the limit

This is the previous example in reverse: the Fourier integral fails to exist in the standard sense because the function is not absolutely integrable. Consider the sequence \exp(-\tau|x|)\text{sgn}\,x as \tau\to0; the transform is \dfrac1{\tau+i2\pi s}-\dfrac1{\tau-i2\pi s}, tending to 1/i\pi s (p. 140). Measured with \tau=10^{-3}, s=0.3: it differs from the limit by only 3.0e-07.

Self-check, part 1

• What is the transform of \sum a_n\Pi[(x-b_n)/c_n]?
• Why does \text{sgn}\,x need a limit sequence?
• What result is needed after completing the square for the Gaussian?

Hints: \sum a_nc_ne^{-i2\pi b_ns}\text{sinc}\,c_ns; because it is not absolutely integrable; the integral of e^{-\pi u^2} is 1.

Three limitations of data

• Data are spaced \Delta x: Fourier components with periods shorter than 2\Delta x hardly carry information, so computing beyond about (2\Delta x)^{-1} is unnecessary.
• Data are given only for -X<x<X: F(s) need not be calculated at points closer than \Delta s=(2X)^{-1}.
• Data contain errors: the power spectrum of the error sets a limit on the meaningful decimals.

That is Bracewell, pp. 140 to 141. If fine detail in F(s) requires a finer interval than (2X)^{-1}, measurements of f(x) must extend beyond x=X.

Degrees of freedom

A function f(x) tabulated at interval \Delta x over a range 2X possesses 2X/\Delta x degrees of freedom, which should be comparable with the number of data computed for the transform (p. 140; chapters 10 and 14 explore it in detail). Example \Delta x=1, X=6: 12 degrees of freedom, maximum frequency 0.5, frequency step 0.0833.

A finite sum replaces the integral

Let f(x) be represented by values at x=n, n=-X\ldots X. Before transforming we must assume how f behaves outside the range: suppose f=0 where |x|>X. Then \sum_{-X}^{X}f(n)e^{-i2\pi sn} approximates F(s); real and imaginary parts give two separate sums C=\sum f(n)\cos2\pi sn and S=\sum f(n)\sin2\pi sn (p. 141), with F=C-iS. Each value of s needs 2X+1 terms, which is a lot of computing; by symmetry summation from 0 to X suffices.

Cooley and Tukey, Lanczos and Gauss

In the mid-sixties the signal processing community was profoundly influenced by Cooley and Tukey (1965): divide the data set in two, take the separate transforms and combine them, and the work is roughly halved; further subdivision is better still. Lanczos had published this in 1942, and Gauss used the idea in 1805 for numerical analysis of cometary data. After some years the name "Cooley-Tukey algorithm" gave way to Fast Fourier Transform (p. 141).

One command for the FFT, but the black box needs understanding

The single MATLAB statement F=\text{fft}(f) generates the complex transform of a sequence virtually instantly, whether the number of elements has factors, is prime or is a power of 2 (p. 142). The notebook checks a prime length of 13: the FFT differs from the slow sum by at most 5.5e-15. The book warns that the canned black box cannot safely be approached without understanding its content; many students run an FFT package prematurely and are perplexed when rectangle data do not give the expected sinc shape or amplitude (p. 142).

Why the "slow" transform is still used

• Faster computers make the direct sum fast enough for many purposes.
• Students can do numerical work before confronting the awkward subtleties of the fast algorithms.
• Confirming entries in the Pictorial Dictionary and gaining experience with theorems.
• Catching sign errors or factors of 2 or \pi in hand algebra faster than by careful repetition of a derivation.

Per Bracewell, p. 142. The Hartley transform (chapter 12) also achieves all these purposes and gives real output from real input.

The slow Fourier transform program

Let f(x) be given at integer x=-X\ldots X (rescale if needed). Since the real and imaginary parts do not come at integer s, an integer index k from 0 to K is used with s=k/2K; the maximum frequency is 0.5. For each k, sum f(x)\cos(2\pi sx) and f(x)\sin(2\pi sx) over all x (pp. 142 to 143). Only k\ge0 is needed since for negative k the transform is the complex conjugate (about half the running time of the standard FFT). Gross check: R(0) equals the sum of the data and I(0)=0.

Choosing K: critical spacing, finer, and a narrow band

With K=X we get X+1 values of R and X values of I (not counting I(0)=0), exactly the 2X+1 independent constants justified by the data; the spacing 1/2X is called the critical spacing. Measured: reconstructing the data from these R,I deviates by 6.1e-16. K=4X adds interleaved points that make the graph smoother without extra information; letting k run from 0 to X/2 doubles the spacing, good for debugging. With k from 5X to 7X and K=12X one examines a band around s=0.25 at 12 times the critical resolution (\Delta s=1/24X); the standard fast algorithms do not offer this flexibility (p. 143). Measured: 13 points at step 0.00694, deviating from a zero-padded FFT by only 4.6e-15.

Self-check, part 2

• Data spaced 1 over [-6,6]: maximum frequency and frequency step?
• Why is K=X enough to reconstruct the data?
• What happens if K is raised to 4X?

Hints: 0.5 and 1/12; because R and I give exactly 2X+1 independent constants; interleaved points with no extra information.

The example data

The input is 13 values of f(x)=\Pi(x/12) at x=-6\ldots6: eleven ones in the middle and two values of \tfrac12 at the ends (the mean value at the discontinuity). The sum is 12 so R(0)=12, equal to F(0). Choosing K=2X=12 gives half the critical frequency spacing (p. 144).

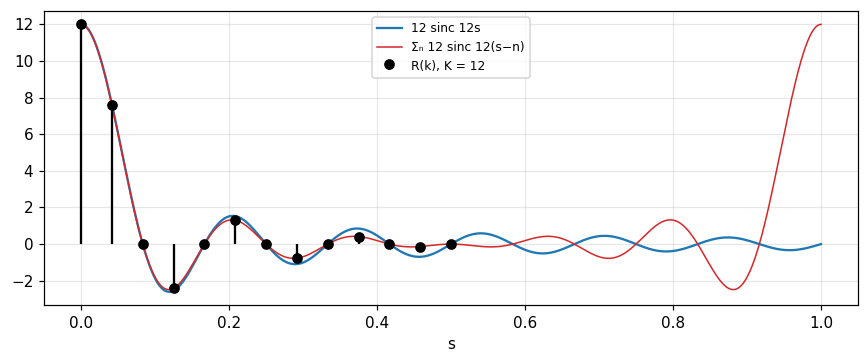

Result with K=12

Since f is even, all I(k) vanish. The values of R(k): R(1) = 7.596, R(3) = -2.414, R(5) = 1.303, R(11) = -0.132, while the even-index R(k) for k\ge2 are 0 (p. 144). Against 12\,\text{sinc}\,12s=7.639 at s=1/24, R(1) differs by -0.57 percent.

K=24: a quarter of the critical spacing

Keep the data unchanged and choose K=24: values at the earlier frequencies are unchanged, and the interleaved frequencies give a smoother graph (p. 144). R(1) = 10.788 and R(3) = 3.555 are the new interleaved values, while R(2) = 7.596 coincides with R(1) of the previous run (s=1/24).

Zero padding does not change the transform

Change X to 12 and pad the original data to 25 values with zeros at both ends, keeping K=24: the transform values are unchanged (p. 144). Indeed the added terms are all zero. Measured: the maximum difference between the two computations is 0.

Twice as dense data: \Pi(x/24)

Keep X=12 but use 25 values starting and finishing with \tfrac12 and 23 ones between (equivalent to \Pi(x/24), transform 24\,\text{sinc}\,24s), and keep K=24 (p. 144). Then R(1) = 15.257; the difference from 24\,\text{sinc}\,0.5 is only -0.14 percent, an improvement by a factor 4 over the first example.

The absolute error does not shrink with k

Bracewell asks us to verify that the absolute error does not diminish as k increases (p. 144). The reason will be clear on the next slide: the error has the form \sin(2\pi Xs)\left[\cot\pi s-\frac1{\pi s}\right], whose envelope |\cot\pi s-1/\pi s| does not depend on X, for instance 0.2732 at s=0.25. So denser data make the signal larger in proportion to X while the error keeps its amplitude, hence the relative error falls.

The origin of the discrepancy: overlapping replicas

Letting k run to 2K makes s reach 1.0 and R climbs back to the value it had at s=0 (p. 144). The discrepancy from 12\,\text{sinc}\,12s arises mainly from the overlapping replica 12\,\text{sinc}\,12(s-1), and in general the actual value of R is \sum_n12\,\text{sinc}\,12(s-n). Measured: R at s=1 is 12; the sum truncated at |n|\le20000 at s=1/24 is 7.596, equal to R(1) 7.596 above.

A lesson: phase depends on the origin, power does not

With many waveforms the choice of origin is unimportant because the wave shape does not depend on what instant is chosen as origin. The real and imaginary parts, heavily affected by the choice of origin, are not needed all that often; instead R^2+I^2 is an intrinsic property of the waveform, and choice of origin affects the phase \arctan(I/R) only by a linear phase shift with frequency (p. 143). Measured: moving the origin of the rectangle data by 3 units keeps R^2+I^2 at s=0.1 equal to 3.273 (unchanged) and adds phase -108 degrees.

Self-check, part 3

• Why is R(0)=12 in the example?
• Does zero padding change F(s)?
• Why does denser data improve the relative error but not the amplitude of the absolute error?

Hints: the sum of the data equals F(0); no; the error is aliasing with an amplitude independent of X.

The principle

A wide variety of functions, especially in theoretical work, can be transformed if some property permits a simplifying application of a theorem (Bracewell, p. 145). Many theorems take the form "if f and F are a pair then g and G are also", so from a known pair new ones are generated.

A polygonal function = triangle * set of impulses

If we perceive that a polygonal function is the convolution of the triangle function and a set of impulses, we handle the impulses as above and multiply by the transform of the triangle (Fig. 7.1, p. 145):

The trapezoidal pulse

Example: \Lambda(x)*\mu(x), with \mu(x)=\tfrac12\delta(x+\tfrac12)+\tfrac12\delta(x-\tfrac12), is the trapezoidal pulse with transform \text{sinc}^2s\cos\pi s (p. 145). At s=0.3 numerical integration and the formula both give 0.4331.

Continued differentiation for segmentally linear functions

There is a special application of the derivative theorem widely used for switching waveforms. For a segmentally linear function the first derivative contains impulses; we remove the impulse and differentiate again (Fig. 7.2, p. 146), leaving only a set of impulses \sum C_n\delta(x-c_n). If the first derivative contains a further set \sum B_n\delta(x-b_n) and the original contains \sum A_n\delta(x-a_n) then (p. 146):

The triangle by two differentiations

The simplest example: \Lambda''(x)=\delta(x+1)-2\delta(x)+\delta(x-1), with transform 2\cos2\pi s-2=-4\sin^2\pi s. Dividing by (i2\pi s)^2 gives \text{sinc}^2s, as known. Measured at s=0.3: it deviates by 0.0e+00 from \text{sinc}^2(0.3).

The parabolic pulse: two differentiations

Consider f(x)=(1-x^2)\Pi(x/2). The first derivative is -2x\,\Pi(x/2) (no impulses since f is continuous at \pm1, as f(\pm1)=0). The second derivative is 2\delta(x+1)-2\Pi(x/2)+2\delta(x-1), with transform 4\cos2\pi s-4\,\text{sinc}\,2s (pp. 146 to 147). At s=0.3 this side is -3.254; multiplying F(0.3) computed by integration by (i2\pi s)^2 gives the same number.

The integration constants

Dividing by (i2\pi s)^2 gives F(s)=\dfrac{4\cos2\pi s-4\,\text{sinc}\,2s}{(i2\pi s)^2}+K_1\delta(s)+K_2\delta'(s) with K_1 and K_2 integration constants, since a constant or a linear ramp could be added to f without changing the second derivative. Integration of the given pulse shows no additive constant or ramp, so K_1=K_2=0 (p. 147):

At s=0.3: 0.9159. The limit s\to0 is 1.3333, equal to the area \int(1-x^2)dx=\tfrac43.

Which technique when

Self-check, part 4

• Why does the trapezoid have transform \text{sinc}^2s\cos\pi s?
• How many differentiations reduce (1-x^2)\Pi(x/2) to impulses?
• Why can there be constants K_1\delta(s) and K_2\delta'(s)?

Hints: triangle * two half-strength impulses; twice (leaving a rectangle and impulses); because the function loses a constant and a slope on twofold differentiation.

From Newton to today

The historical sequence of measuring spectra begins with Isaac Newton in his Opticks of 1704. Spectra are still produced by prisms and other optical devices, especially diffraction gratings and Fabry-Perot interferometers (Bracewell, p. 147).

The radio-frequency spectrum analyzer

In radio, radar, television and laboratory instruments, spectrum analyzers display signal strength versus frequency. A radio receiver is a primitive spectrum analyzer as the tuning knob is turned. A modern instrument samples the waveform with conventional circuitry, performs fast spectral analysis by computer and displays or stores the spectrum (p. 147). By 1990 fully programmable instrumentation based on the Hartley transform was commercially available with picosecond resolution (p. 147).

A bank of fixed-frequency filters

An alternative is a bank of fixed-frequency filters, implemented by computer, as at the SETI Institute searching for radio signals from nonsolar planets over a 20 MHz band with resolution as fine as 1 Hz (p. 147).

Optical Fourier transform spectroscopy

This way is not in the line of evolution from electric circuit practice, and is of particular importance for detecting and identifying molecules by their infrared spectra (p. 148). If we can determine the temporal autocorrelation of an electromagnetic signal s(t) then Fourier transformation gives the power spectrum. Split the signal into two beams to form s(t)s(t+\tau) with variable delay \tau: a mylar film at 45 degrees lets one beam continue straight and reflects the other at a right angle, to a plane mirror and back. Moving the mirror away adds delay.

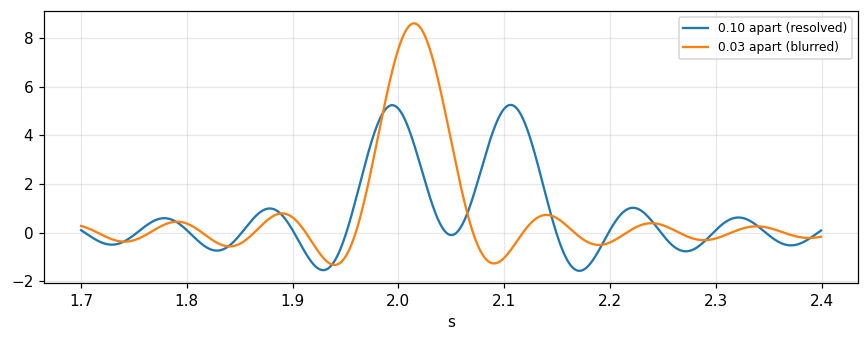

Resolution and band covered

With a maximum delay \tau_{\max} a spectral resolution bandwidth of about 1/2\tau_{\max} is achieved; the band covered extends to a high frequency 1/2\Delta\tau, where \Delta\tau is the mirror step (p. 148); these are the limits \Delta s=1/2X and s_{\max}=1/2\Delta x met earlier. Measured with two lines of equal strength, \tau_{\max}=10 and \Delta\tau=0.1 (resolution 0.05, band 5): lines separated by 0.1 are resolved (2 maxima), lines separated by 0.03 are not (1 maximum).

Aliasing in the interferometer

A line beyond 1/2\Delta\tau folds back into the lower band. Measured: a line at 6 with \Delta\tau=0.1 appears at 4, exactly 1/\Delta\tau-6, i.e. 10-6; this is the same aliasing met in sampling (module 13).

The autocorrelogram is even, the cross-correlogram is not

Positive delays alone suffice since the autocorrelation is even (the time-averaged s(t)s(t+\tau) equals that of s(t)s(t-\tau)). But if \tau is varied from positive to negative the origin of the autocorrelogram is apparent in the presence of small maladjustments (p. 148). If a known spectrum such as a black-body's is used and a transparent sample placed in one beam, a cross-correlogram is recorded, not an even function; Fourier transformation delivers a complex result from which permittivity and conductivity, or refractive index and absorption coefficient, follow over the full spectral range: a richer result than a simple absorption spectrum. An opaque specimen can serve as the moving mirror to obtain the complex reflection coefficient (Bell, 1972; p. 148).

Problems 1 to 4: numerical checks

Problem 1 (p. 149): the exact relation \int x^2f\,dx=-F''(0)/4\pi^2 can be the basis for a numerical check of R(k): the second moment \sum x^2f(x) must agree with -R''(0)/4\pi^2. Measured with f=e^{-\pi(n/5)^2}: \sum n^2f = 19.894, and from the second difference of R at the origin 19.894. Problems 2 and 3: \cos\pi x^2\supset(\cos\pi s^2+\sin\pi s^2)/\sqrt2 and e^{i\pi x^2}\supset\sqrt i\,e^{-i\pi s^2}; at s=0.3 the first value is 0.8763, and the phase of the second at s=0 is 45 degrees. Bracewell recommends thinking of a numerical check to catch a missing factor such as \sqrt2.

Problems 5, 7, 8, 9, 10

Problem 5: f=\Lambda(x/16)+\Lambda(x/8+1) has F=16\,\text{sinc}^216s+8\,\text{sinc}^28s\,e^{i2\pi8s}; 33 values with the slow program (\Delta s=1/64) give R(0) = 24 and a largest deviation from the formula of 0.06. Problem 7: the product \prod_{n\le N}(1-s^2/n^2) does not approach a Gaussian but \text{sinc}\,s: at s=0.3 it is 0.8584 for N=10^5, at s=1.5 it is -0.2122 (negative, a Gaussian is positive). Problem 8: the seven numbers F_k of the weekday data (read from the OCR text as 5, 4, 9, 8, 7, 6, 10): F_0 = 49, |F_1| = 3.396. Problems 9 and 10: for f=\Lambda(x/a-1), a=2, s=0.3: sine transform -0.5985, cosine transform -0.8238 (definitions F_c=2\int_0^\infty f\cos, F_s=2\int_0^\infty f\sin).

Self-check, part 5

• Which quantity does the interferometer measure before transforming to obtain the spectrum?
• Why does the cross-correlogram give more information than an absorption spectrum?
• What function does \prod(1-s^2/n^2) converge to?

Hints: the autocorrelation; because the result is complex (amplitude and phase); \text{sinc}\,s.

Takeaways

• Closed-form integration works for segmented functions, impulses, exponentials and the Gaussian; 1/x and \text{sgn}\,x need a contour integral or a limit sequence.
• Finite data give s_{\max}=1/2\Delta x, \Delta s=1/2X and 2X/\Delta x degrees of freedom.
• The "slow" transform is a few lines of code that let you choose K and zoom into a band; its error is mainly overlapping replicas.
• Repeated differentiation reduces piecewise linear or polynomial functions to impulses; integration constants are fixed by the area and other constraints.
• Fourier transform spectroscopy measures the autocorrelation and transforms it into the spectrum.
